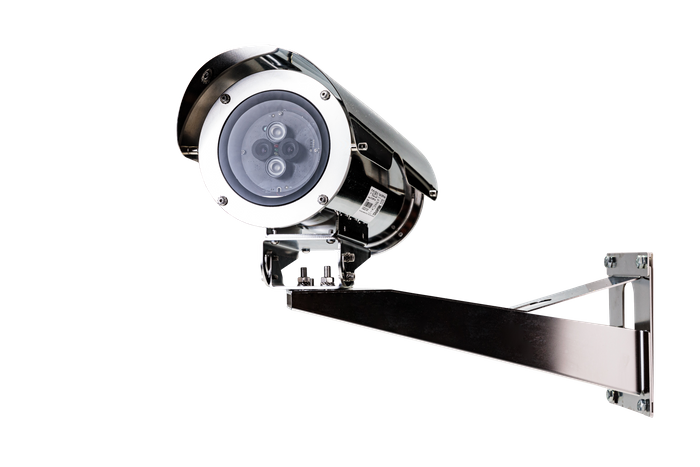

The XCR FP is a dual spectrum video flame detector which simultaneously processes visual and infrared feeds to recognise and detect fire. It is part of the Ciqurix CORE system, and uses the
Ciqurix QLS protocol.

Housed entirely in electropolished and passivated AISI 316L stainless steel, and with IP66/67/68/69 ingress ratings, it is suitable for installation in highly corrosive areas and those with a high chlorine salt content, with complete protection against bad weather and water immersion.

All connections are made inside the housing, with entry via a nickel-plated brass PG13.5 cable gland.
Designed to be used with a CORE Hub, it has punchdown cable termination suitable for "FP" fire resistant Cat 5e or Cat 6 data cable. Each XCR FP detector receives data and power through a single cable connected directly to the nearest CORE Hub.

ENVIRONMENT high corrosion risk (316L)

DETECTION RANGE 180m indoor / 80m outdoor

POPULAR APPLICATIONS waste & recycling (dockside), marine, coastal sites, chemical handling areas, manufacturing
