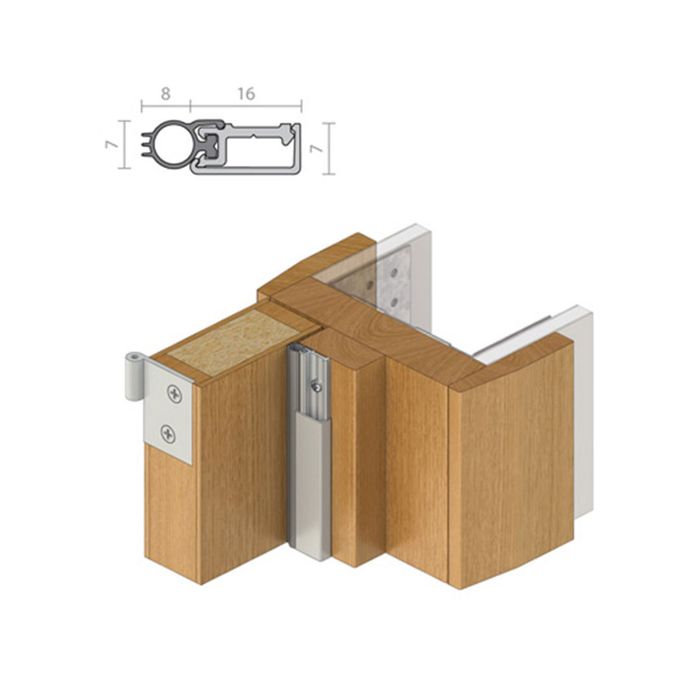

A weather and acoustic seal suitable for rebated frames.

RP94Si is quick and easy to install, either mitred or butt jointed to the head and jambs without removing the door. Slotted for installation adjustment, the soft silicon bulb accommodates a tighter seal and with a tamper proof cover strip, provides a fit and forget feature.

Note:
The tamper proof aluminium cover strip is not recommended for removal once installed , refer RP78Si for this feature.

Location
Head and jambs of single or double broad butt hinged doors.

Min/Max Gap 0mm/ 6mm.

Fixing Method
Zinc plated, cross recess head S.T. screws or the appropriate size are supplied.

Seal Material
Silicon Rubber (SE) (charcoal).

Replacement Seal
RP394Si

Used in conjunction
Raven door bottom seals, astragal and threshold plates.

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/raven-perimeter-seals.html#RP94Si
