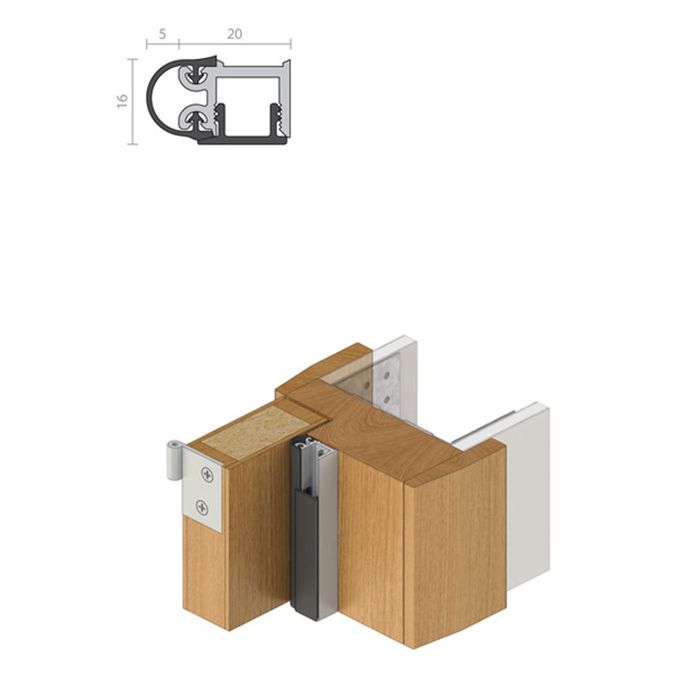

RP84Si - Perimeter Smoke Seals
![](https://cdn.asp.events/CLIENT_Nineteen_F7A1E73F_5056_B725_6BE81DEAAC036B43/sites/The-Fire-Safety-Event/media/libraries/exhibitor-products/80699-Raven-RP84si.jpg/fit-in/700x9999/filters:no_upscale())
Designed specifically for 'clean room' applications. Its easy cleaning aluminium extrusion and flexible smooth silicon sealing section considerably reduces sound transmission and prevents movement of air borne contaminates, thus allowing for controlled air ventilation.
Location
Head and jambs for single and double broad butt hinged doors.
Min/Max Gap 0mm to 7mm
Fixing Method
Zinc plated, cross recess head S.T. screws of the appropriate size are supplied.
Seal Material
Silicon (black)
Replacement Seal
RP384Si
Used in conjunction
Raven door bottom seals and astragal seals.
For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/raven-perimeter-seals.html#RP84Si
