A medium temperature smoke door frame seal that has been tested to AS 1530.4, AS/NZS 1905. 1. Similar to BS 476 part 20 and 22.

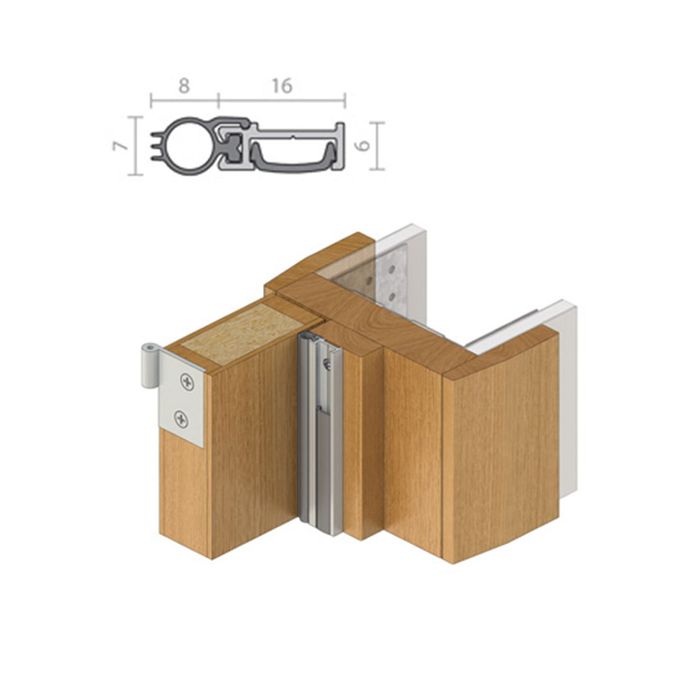

It is an acoustically designed smoke seal for installation on door stops and it can be mitred or butt jointed. Its aluminium carrier is sturdy and slotted for adjustment with concealed fixings. It is quick and easy to install around the jamb and head and can be fitted without removing the door.

Location
Head and jambs on single or double butt hinged doors.

Min/Max Gap 0mm to 6mm

Fixing Method
Zinc plated, cross recess head S.T. screws of the appropriate size are supplied.

Seal Material
Silicon Rubber (SE) (charcoal).

Replacement Seal RP394Si

Used in conjunction
RP8Si, RP6Si, RP38Si, RP99Si and RP70Si.

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/raven-perimeter-seals.html#RP78Si
