A heavy duty, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is self levelling and reversible for left and right handed operation. Acoustically designed, it features a silicon gasket for medium temperature smoke and fire door applications. Doubles as a kick plate when semi-morticed. Operated automatically by pressure against the door jamb or stop on its adjustable brass strike.

Location

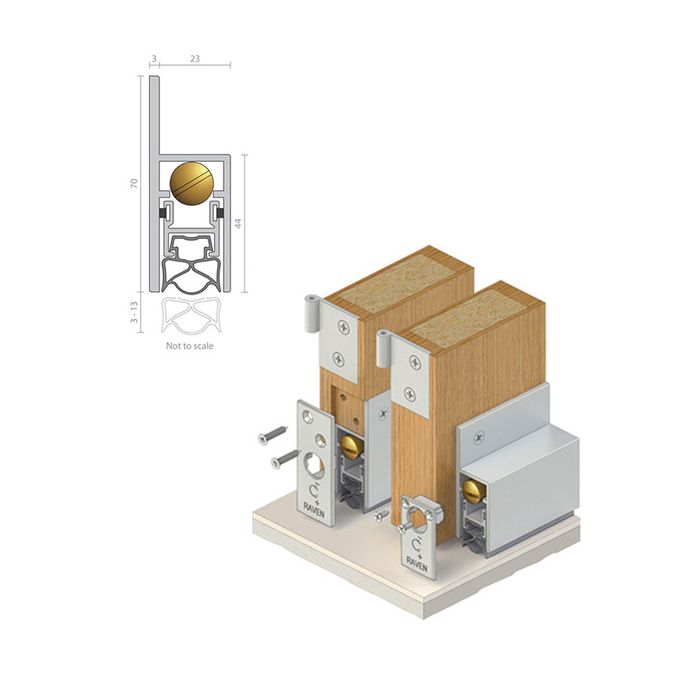

Face mounted or semi-morticed into bottom of single and double butt hinged doors.

Min/Max Gap 3mm to 13mm.

Fixing Method
Screw fix. Colour matched escutcheon plates and zinc plated, cross recess head S.T. screws supplied.

Seal Material
RP338Si. Anodised Satin Clear

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/raven-bottom-seals.html#RP38Si
