RP24Si - Perimeter Smoke Seals
![](https://cdn.asp.events/CLIENT_Nineteen_F7A1E73F_5056_B725_6BE81DEAAC036B43/sites/The-Fire-Safety-Event/media/libraries/exhibitor-products/80696-Raven-RP24si.jpg/fit-in/700x9999/filters:no_upscale())

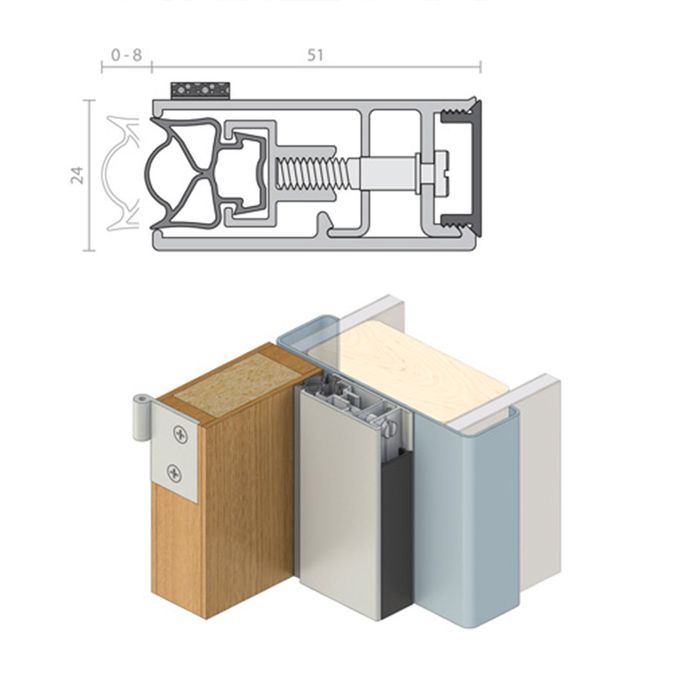

An adjustable door stop seal for noise, light and smoke. The RP24 seal uses independently adjustable fasteners to achieve up to 8mm sealing adjustment for maximum noise control.
The seal can be butt jointed at the corners to produce an easily installed continuous seal around the door frame. Its aluminium carrier is sturdy and slotted for adjustment with concealed fixings. It is quick and easy to install around the jamb and head and can be fitted without removing the door.
It is tamper proof with fully concealed fasteners to give the seal an aesthetic appearance. The closed cell S.E. Sponge E.P.D.M. seal requires only normal door closing force. If fixing to rebated frames of single doors, specify a long backset door latch. RP24 has been granted an Australian Design Award. It is an effective acoustic seal when tested in accordance with BS EN ISO 717.1.
Location
Head and jamb of single or double broad butt hinged doors.
Min/Max Gap 0mm/8mm.
Fixing Method
Zinc plated cross recess head S.T. screws of the appropriate size are supplied.
Adjustment
Can be adjusted by 8mm independently of the fixing screws.
Seal Material
Closed cell EPDM sponge, self extinguishing (black).
NOTE
Different gasket profile conforms to bca spec c3.4
For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/raven-perimeter-seals.html#RP24Si
