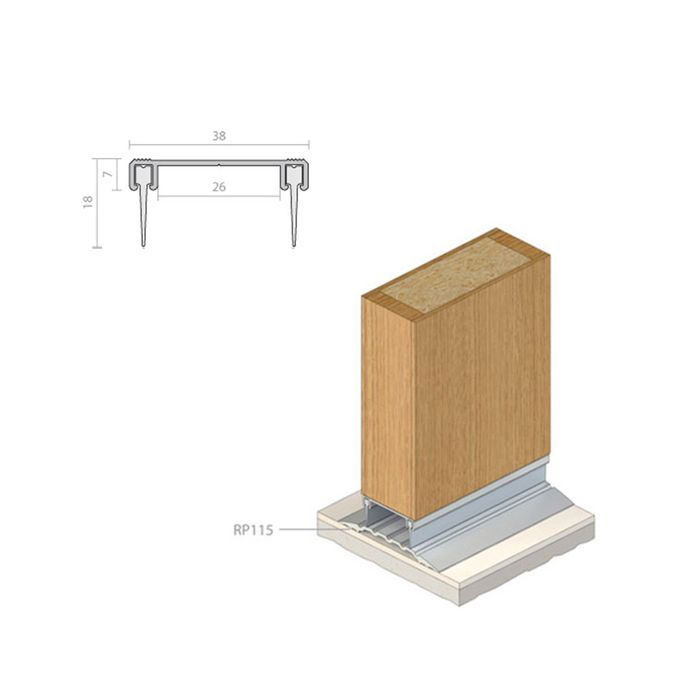

A silicon rubber seal in a 15 micron anodised Aluminium carrier. The seal can be checked out or drilled to accommodate the pivot, thereby providing a continuous seal. Durability Tested to over 1,000,000 operating cycles without failure.

Location
Double butt hinged and centre pivot double acting doors.

Min/Max Gap 14mm to 18mm.

Fixing Method
Zinc plated, cross recess S.T. screws of the appropriate size and colour are supplied.

Seal Material
Silicon Rubber (SE) (Light grey)

Used in conjunction
Raven threshold plates. Raven RP115 Threshold Plate recommended.

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/raven-bottom-seals.html#RP129Si
