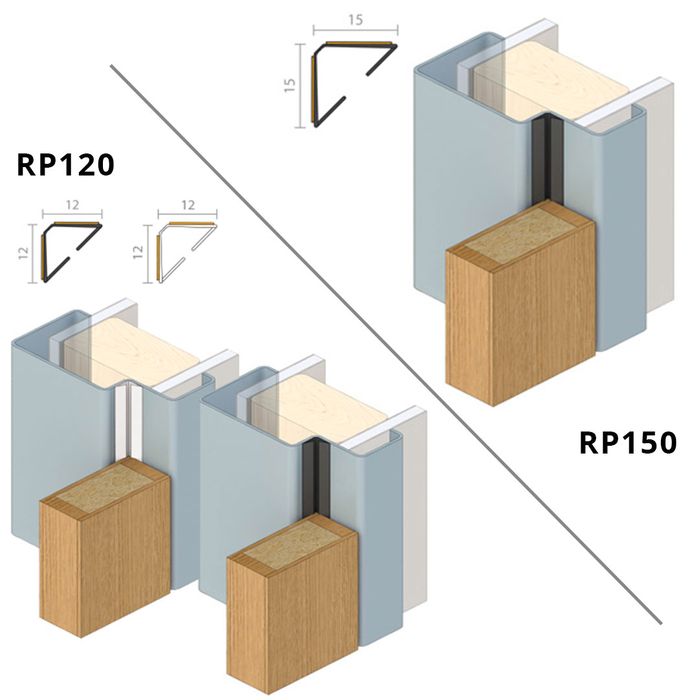

A co-extruded PVC, acoustic and smoke seal. Discreetly located in the protected corners of rebated timber or steel door frames. RP120 & RP150 have been tested to AS/NZS1530.4 on proprietary fire doors and conforms to BCA spec. C3.4 200C Medium temperature (smoke doors), similar to BS476 part 20 and 22. Suitable for new and retrofit applications.

Location
Around rebated frames of single or double broad butt hinged doors and windows.

Min / Max Gap 3mm to 5.5mm

Seal Material
Rigid and Flexible flame retardant PVC, with an aggressive self adhesive backing tape on both sides of the rigid carrier.

Used in Conjunction
Raven door bottom seals, threshold plates and astragal seals.

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/raven-perimeter-seals.html#RP120-RP150
