RP10Si - Perimeter Smoke Seals

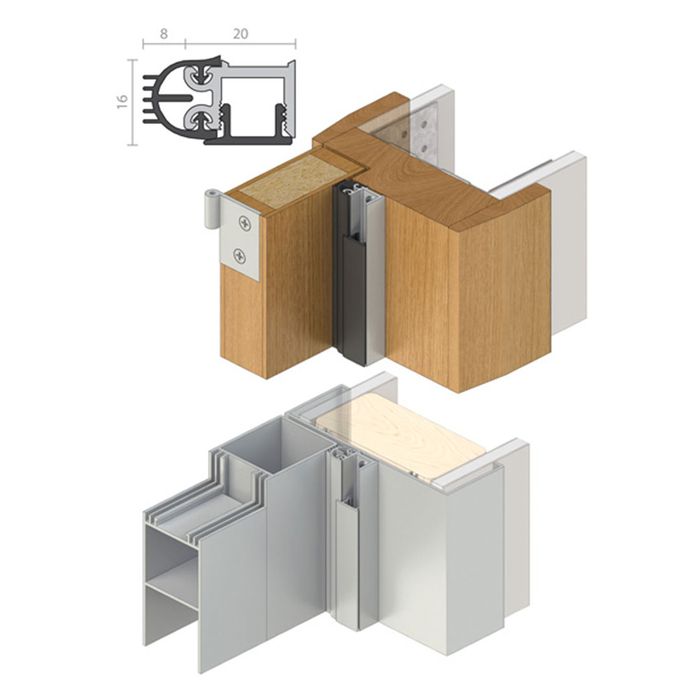

A neat compact door stop frame seal which has proven to be an effective acoustic seal when tested in accordance with BS EN ISO 717.1.
It is quick and easy to install onto the door frame as a door stop. It is adjustable, by concealed fixing slots, for a precision fit.
The multi blade seal considerably reduces the leakage of noise and air movement. The minimum deflection of the sealing fins creates maximum efficiency, offering a large tolerance for door movement over time. The seal can be mitred or butt jointed to give an integrated aesthetic appearance. Note: If fixing to rebated frames of single doors, specify a long backset door latch.
Location
Head and jambs of single or double broad butt hinged doors.
Min/Max Gap 0mm/10mm.
Fixing Method
Zinc plated, cross recess head S.T. screws of the appropriate size are supplied, Fixing holes are pre drilled and are slotted to allow the seals to be fitted accurately and to allow adjustments to be made for building movement.
Seal Material
Silicon rubber (SE) (Charcoal)
Replacement Seal RP310si.
Used in Conjunction
Raven Door Bottom Seals, Astragals and Thresholds.
For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/raven-perimeter-seals.html#RP10Si
