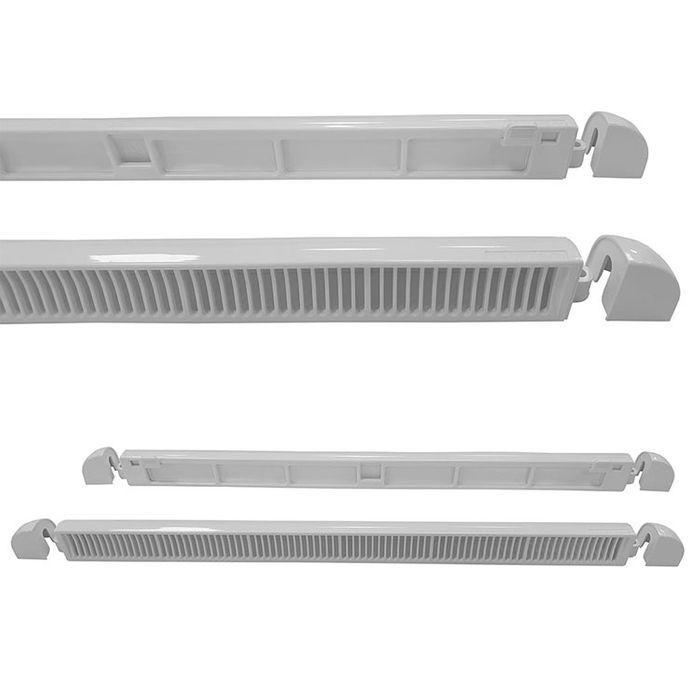

Manufactured in the highest quality U.V Stabilised PVCu, the Framevent Hi-Flow have been specifically designed to make it easy to achieve the requirements of Approved Document F 2021 whilst still maintaining the smooth, rounded aesthetic synonymous of the Framevent range. The Framevent Hi-Flow achieves 4,191mm2 EA on a length of only 415mm.

Fixing Instructions

• Route out the Frame with the correct slot size & configuration for the model to be fitted
• Place unit centrally over the slots.

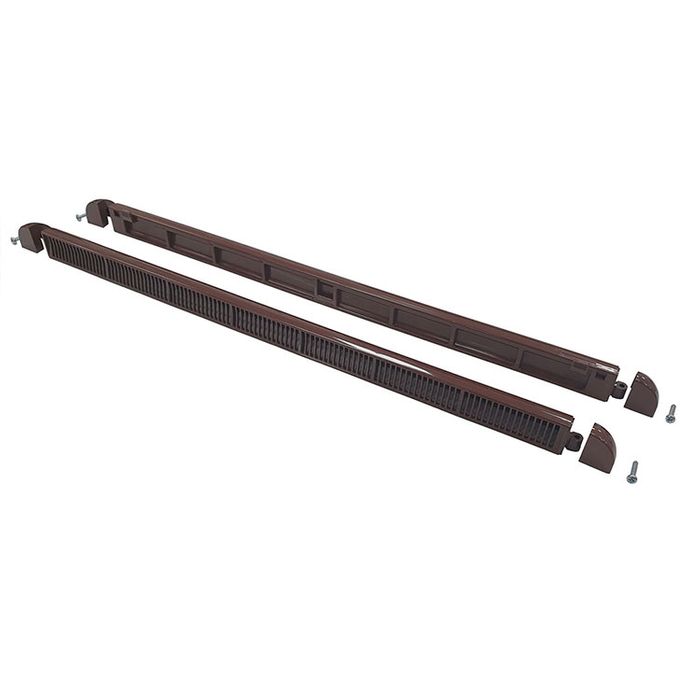

• Fix unit in place by using screws provided.
• Screw hole centres are 20mm in from each end (40mm off the overall length).

Performance

• Independently tested to BS EN 13141-1:2019.
• Water tightness of 400pa.
• Independently acoustically tested in accordance with BS EN 20140-10:2016, ISO 140-10:2010.

Maintenance

• The Framevent can be cleaned using a damp cloth. The external hood should be brushed lightly to remove dust from the flyscreen area.
• *Airflow rates quoted are for when fitted in accordance with manufacturer’s instructions. We recommend silicone sealing vents for best results*.

Product Information

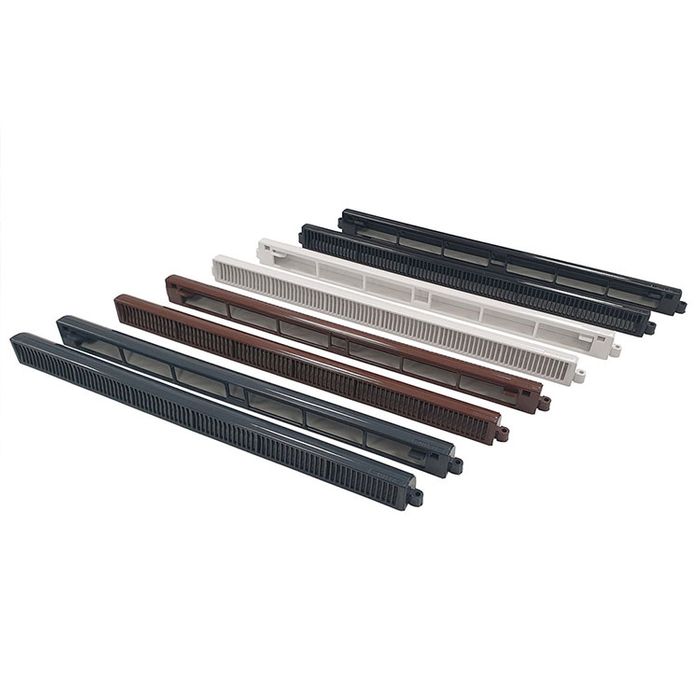

• Available in White, Brown, Black and Anthracite Grey measurement of Framevent Hi-Flow seen below:
• 415mm Length x 28mm wide. Equivalent area as per BS 13141-1:2019 – 4191mm2.
• Slot Size – 365x13mm.

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/framevent-hi-flow-ventilators.html
