FIREFLY™ ATHENA 60:60
)
)
)
)
FIREFLY™ ATHENA 60:60 is a lightweight, flexible fire barrier, fully certified 60 minutes on timber.
FIREFLY™ ATHENA 60:60 is designed to be installed as a two-layer fire barrier system, certified for use on timber to provide compartmentation of larger spaces. Exceeds the Fire Barrier requirements of Building Regulations: Approved Document B (Fire Safety) with 60 minutes Integrity and 60 minutes Insulation.
KEY BENEFITS
- 60 minutes Integrity, 60 minutes Insulation from both sides
- IFC Certified for use on timber - BS476 Parts 20 & 22
- Lightweight, flexible and easy to handle and cut
- Installer-friendly product with installation savings of 30% compared to a triple layer system
- Ideal for lofts and roof voids with restricted access and space
- Works with FIREFLY™ PENOWRAP for a perfect barrier solution on timber
- Utilises standard fixings, angles and high temperature adhesives approved for all FIREFLY™ barriers
USE AREAS
FIREFLY™ ATHENA 60:60 is particularly suited for use as a certified fire barrier system on timber. Its unique construction and ease of handling and installation make it perfect for areas involving timber and restricted access / working space such as lofts and roof voids in Social Housing, Care Homes and Student Accommodation.
CONSTRUCTION

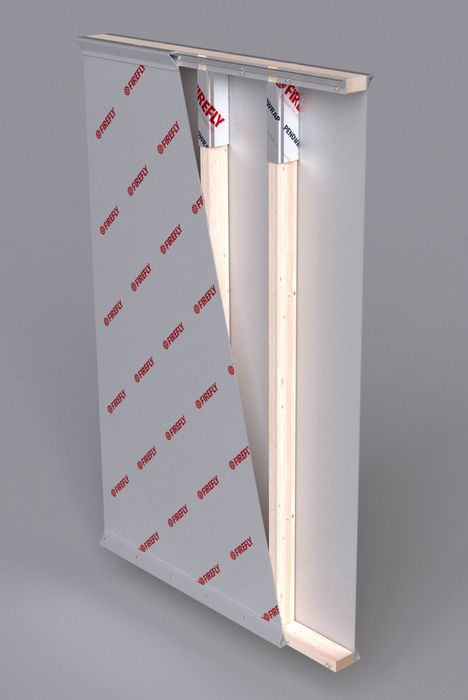

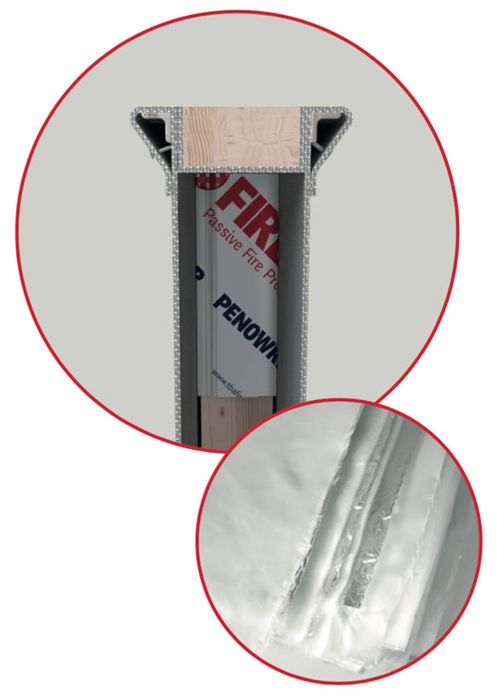

Manufactured using layers of woven and non woven glass fibre, specially treated with a proprietary coating to greatly increase fire resistance, and aluminium foil. The product is designed to be installed as a 2-layer system either side of timber, utilising other FIREFLY™ products including PENOWRAP and High Temperature Adhesive and stainless steel staples.
| DESCRIPTION | Lightweight, flexible Fire Barrier - combined Insulation and Integrity |
| CERTIFICATION | Third Party Certified by IFCC. Certificate number: IFCC 1578 |
| APPLICATION | Vertical - 2 layer system 60:60 from both sides |
| PROPERTIES |
Description: Non-toxic / user friendly / flexible / durable. Colour: White Coating: A chemical treatment to optimise thermal properties and help prevent fibre migration Minimum Thickness: 10mm |
| SPECIFICATIONS |
Exceeds 60 minutes integrity with 60 minutes insulation when tested to BS 476 parts 20/22: 1987 |
| CLASSIFICATIONS | Tested to BS476 parts 6 and 7 - Pass (propagation and surface spread of flame) |
| DIMENSIONS AND PACKAGING | Width: 127cm Roll Length: 6 linear metres Roll Area: 7.62 square metres Packed: Concertinaed and individually wrapped in polythene Minimum Weight: 2.4kg/m2 |
| FIREFLY™ |
All FIREFLY™ products must be installed in compliance with the FIREFLY™ Installation Guide, which is provided upon request. Deviation from these drawings should not be carried out without written authority from the FIREFLY™ Technical Department. |
