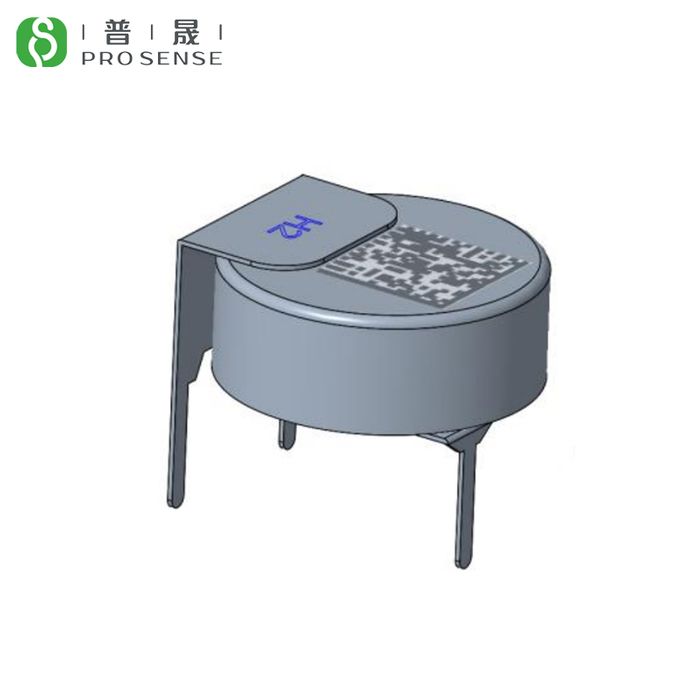

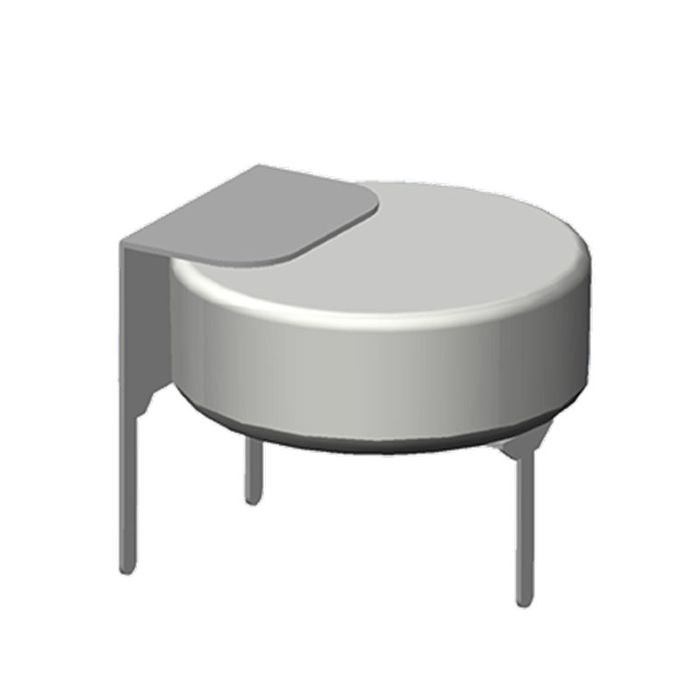

FC-H2 sensor with long service life works on the proven fuel cell technology.Once Hz arives at the working electrode(anode) it is oxidized instantaneously to generatean electrical signal which is proportional to the H₂ concentration. By calibrating the sensorwith a known concentration of Hz, the output current of the sensor can be used toquantitatively detemine Hz concentration. FC-H2 is famous for its long service life.high anti-interference abilitly and the sensor has a compact size which is the ideal choicefor size orienled applications such as portable Hzdetectors, small residential Hz detectors,and multi-sensor fire detectors, The calibration infomation is stored in barcode printed onthe sensor, enabing users to skip the costly gas calbration process and allowing forindividual sensor tracking.Since there is no consumption components in the sensor.FC-HzXXXX possesses excellent long service life and ensures maintenance-freeoperation.

Features

• Fast response
• 0 power consumption
• High accuracy
• Anti-interierence
• Anti-poisoning
• Vide temperature range
• Long service life
• Good stabiity and repeatability
• Meet requirements of GB15322, UL2034 and EN50291

 Applications

• Energy storage system
• industrial safety
• H2 alarm
