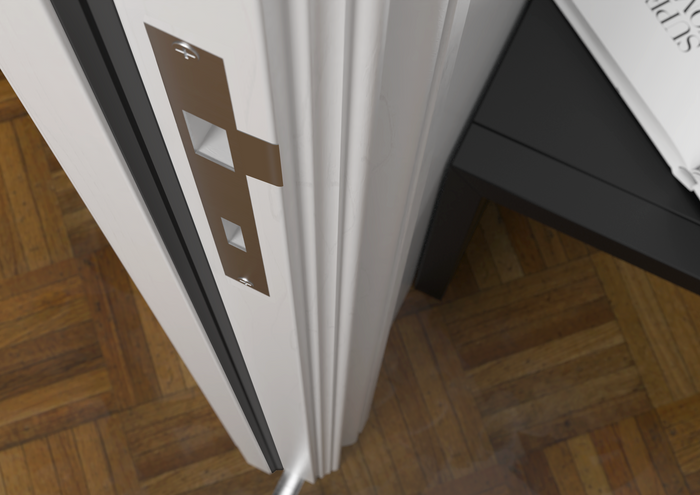

Batwing Acoustic Perimeter Seal
)
System specification
| Property | LAS1010 | LAS1212 | LAS1015 |
|---|---|---|---|
| TEST EVIDENCE | Smoke: BS 476-31.1: 1983 at ambient temperature. Acoustic: BS EN ISO 10140-2: 2010 (up to Rw 44dB). Durability: minimum of 100,000 cycles | Smoke: BS 476-31.1: 1983 at ambient temperature; BS EN 1634-3:2004 at ambient and medium temperature (LAS1212); effective smoke seal up to 200°C. Acoustic: BS EN ISO 10140-2: 2010 (up to Rw 44dB). Durability: minimum of 100,000 cycles | Smoke: BS 476-31.1: 1983 at ambient temperature. Acoustic: BS EN ISO 10140-2: 2010 (up to Rw 44dB). Durability: minimum of 100,000 cycles |
| LOCATION | Head + jambs of single + double leaf doors | Head + jambs of single + double leaf doors | Head + jambs of single + double leaf doors |
| MIN/MAX GAP SIZES | 3mm/4mm | 3mm/4mm | 3mm/4mm |
| SEAL MATERIAL | Co-extruded rigid back PVC with flexible fins | Co-extruded rigid back PVC with flexible fins | Co-extruded rigid back PVC with flexible fins |
| Standard colours | White, black, dark brown, light brown + grey | White, black, dark brown, light brown + grey | White, black, dark brown, light brown + grey |
| Non-standard finishes | Cream, red, silver + clear subject to MOQ | Cream, red, silver + clear subject to MOQ | Cream, red, silver + clear subject to MOQ |
| STANDARD LENGTHS | 1m + 2.1m. Other lengths to special order | 1m + 2.1m. Other lengths to special order | 1m + 2.1m. Other lengths to special order |
CERTIFICATION
| Certifire | CF5179 | CF5179 | CF5179 |
| UL | R27972 | R27972 | R27972 |
| BBA | - | 92/2841 | - |
