Fire extinguishers

22 Nov 2023

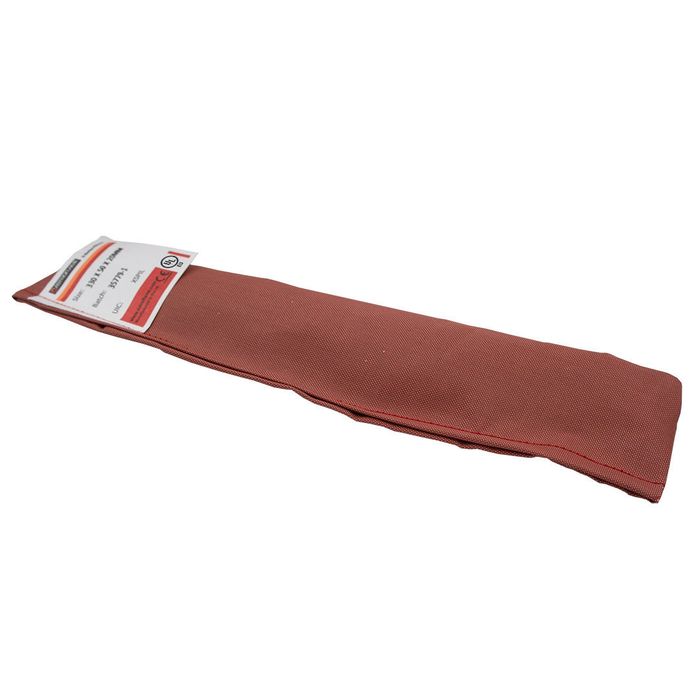

Astro X Series Pillow - Fire Pillows

Astro Flame Fireseals Stand: 4/L25

X Series Fire Pillows are designed to provide an effective fire barrier, on a temporary or permanent basis, for services which are subject to frequent changes or replacement. The fire pillows consist of a waterproof glass cloth bag containing organic fillers and intumescent additives.

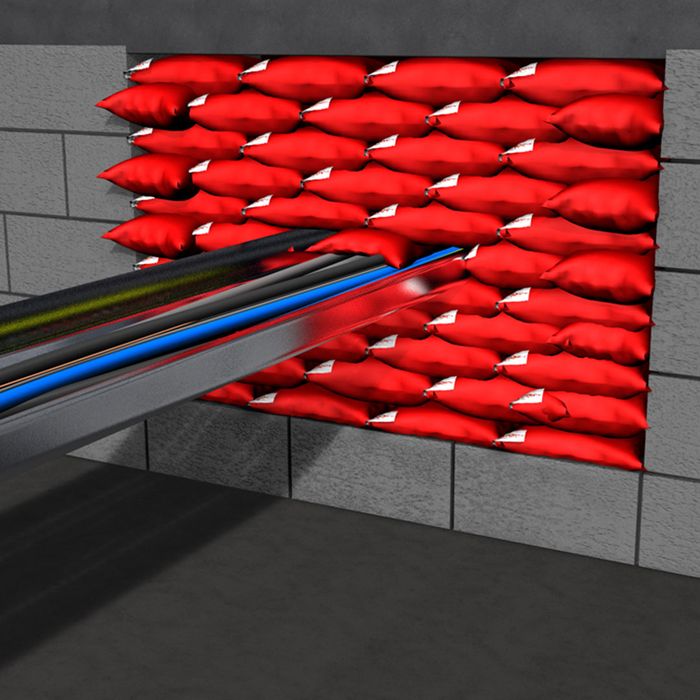

Pillows can be added, removed or rearranged in an aperture to accommodate to the needs of the situation and have been tested with metallic pipes, cables, cable bunches, cable trays and cable ladders.

Tested in block wall, concrete and masonry walls and concrete floors up to 1m² area and suitable for indoor and outdoor locations pillows remain flexible between –5°C to +40°C.

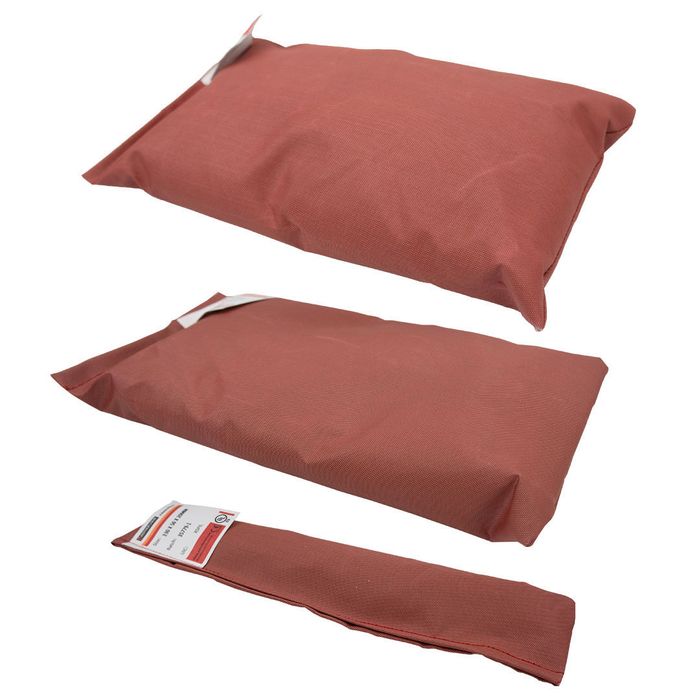

Three sizes of X Series fire pillow are available; please ensure that the correct pillow is installed to suit the opening size. See tables below.

*For specific details please refer to the test certification.

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/fire-pillows-x-series.html
