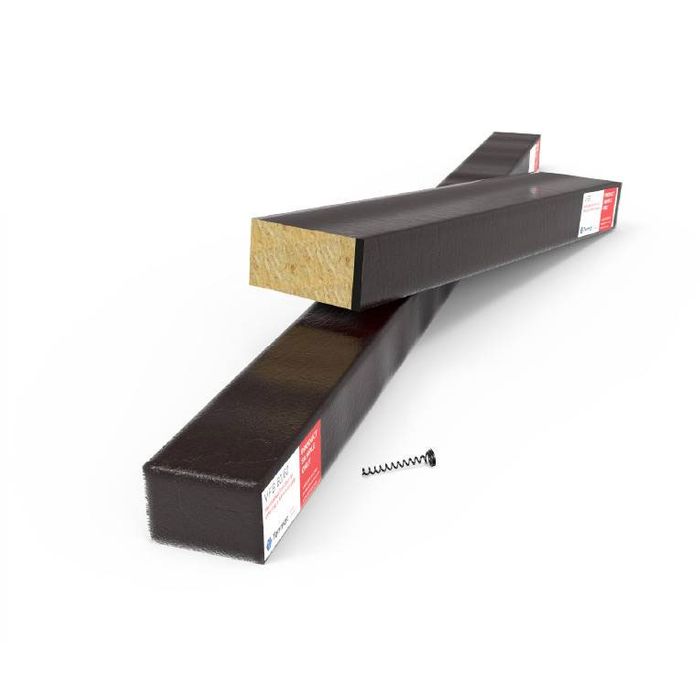

Astroflame's Astro Clad - AFFRCLAD6060 (VFB 60/60) Ventilated Fire Barriers are 'open state' cavity fire barriers for ventilated cavities of up to 450mm. Each Astro Clad - AFFRCLAD6060 (VFB 60/60) consists of a specially formulated fire rated stone mineral wool section with an integral high expansion intumescent seal fixed to the leading edge.

The Astro Clad - AFFRCLAD6060 (VFB 60/60) then leaves a maximum 25mm air gap to allow for drainage and maintain ventilation in normal use. In a fire situation the intumescent seal rapidly expands to seal off the air gap and prevent vertical fire spread within the external wall.

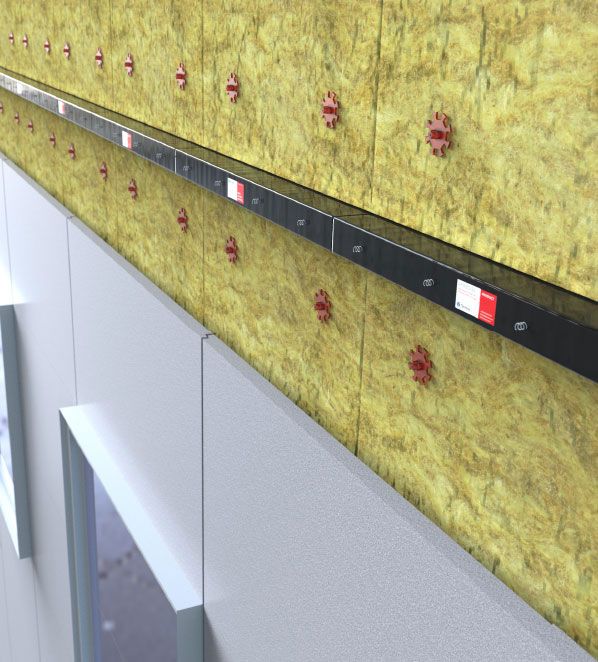

The products have undergone extensive fire testing following the principles of BS EN1363-1 and in accordance with ASFP TGD19 (Fire Resistance Test for 'Open-State' Cavity Barriers). The Astro Clad - AFFRCLAD6060 (VFB 60/60) are mechanically fixed horizontally within ventilated cavities behind the external wall substrate following the fire compartment line.

The Astro Clad - AFFRCLAD6060 (VFB 60/60) are used horizontally and can be installed in conjunction with Astroflame Astro Clad - AFFRCLADNVFB (NVFB) Non-Ventilated Fire Barriers which provide vertical fire separation along fire compartment party wall lines.

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/ventilated-cavity-fire-barriers-vfb-6060-AFFRCLAD6060.html
