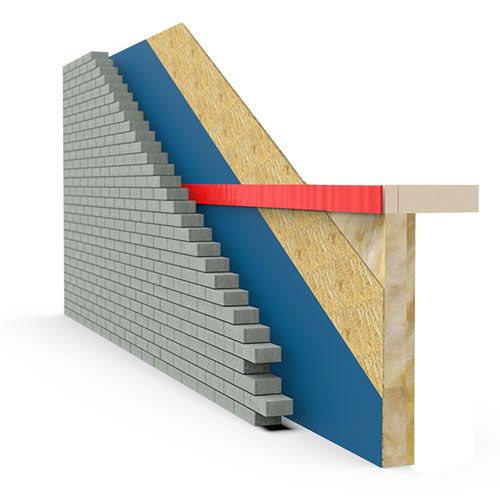

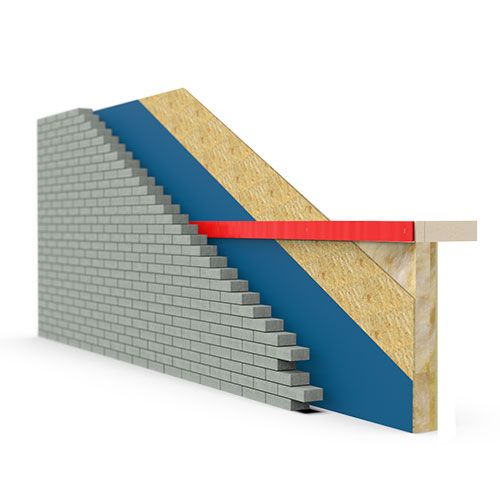

Astroflame's Astro CavGuard Roll 65 is a cavity fire barrier designed to firestop the cavity behind external walls consisting of outer substrates of masonry or brickwork. The low smoke zero halogen highly expansive intumescent material allows ventilation to be maintained in non-fire conditions.

The Astro CavGuard Roll 65 is made from a flexible intumescent material allowing it to be provided in a roll format. With a thickness of only 6mm, the low profile design offers significant space and labour saving over traditional cavity socks, whilst also ensuring the external cavity is left unobstructed and free to ventilate. It is also covered with a protective layer of polythene for ease of handling and to protect it from water.

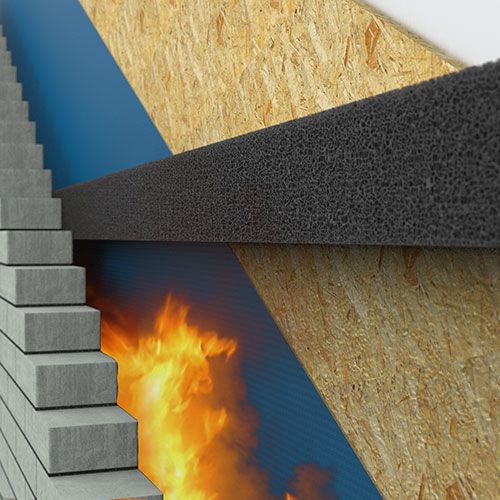

In the event of a fire the Astro CavGuard Roll 65's intumescent material will expand to close the external wall cavity, providing effective fire resistance, for integrity and insulation for 60 minutes* depending upon the construction of the external wall cavity. The Astro CavGuard Roll 65 is designed to close off a total cavity of 65mm which allows for building tolerances of up to 15mm (above the typical maximum cavity ventilation requirements of 50mm).

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/cavity-fire-barrier.html
