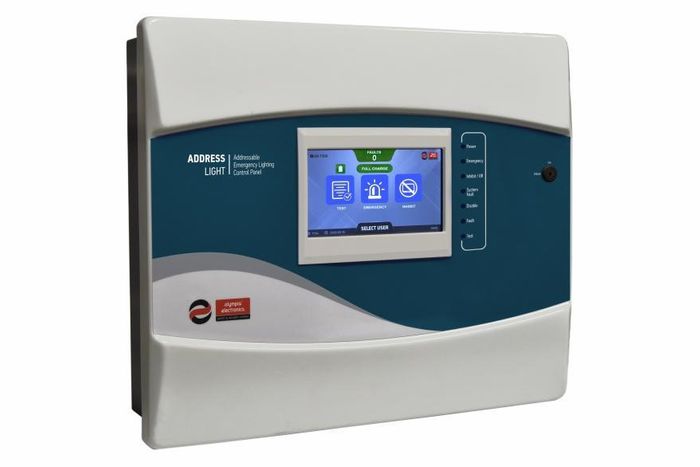

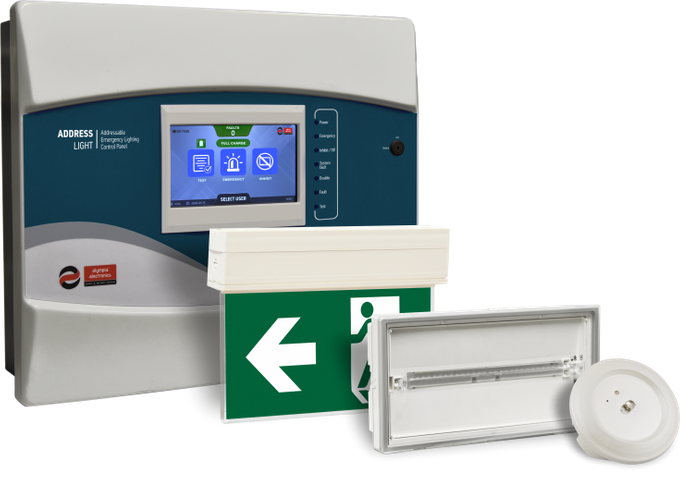

The GR-750X is a series of control panels for high-performance addressable emergency luminaires, designed to monitor
and control demanding, large-scale installations with multiple emergency luminaires.

Each panel can control up to 1000 luminaires, divided into four circuits consisting of 250 luminaires each,
with the ability to program in 200 logical zones in order to perform common tasks or trigger events.

Basic features:

• Graphic interface with 7 ”color touch screen.
• Support up to 4 loops, up to 250 luminaires per loop. Maximum support 1000 luminaires per panel.
• Grouping / Organizing emergency luminaires in 200 zones.
• Automatic inspections of luminaires at regular intervals (adjustable through the technician menu). Functionality and autonomy test on all connected luminaires.
• Panel network of up to 24 panels, based on RS-485 communication protocol. Supports automatic addressing and ring topology to ensure communication.
• Backup batteries (2x12V up to 15Ah).
• Connect to a network using Ethernet / WiFi and receive updates from the Olympia Update Server (Cloud).
• Program (PC-7500) for setting / configuring the table from the computer (Windows PC) and creating, editing, sending and receiving configuration files.
• GUI (WebUI) monitoring and configuration, through browser (Microsoft Edge / Mozilla Firefox / Google Chrome) for a table that is connected to the network.
• Event / error log (up to 6000 records).

Optional thermal printer (GR-7500 / Printer) for event printing
